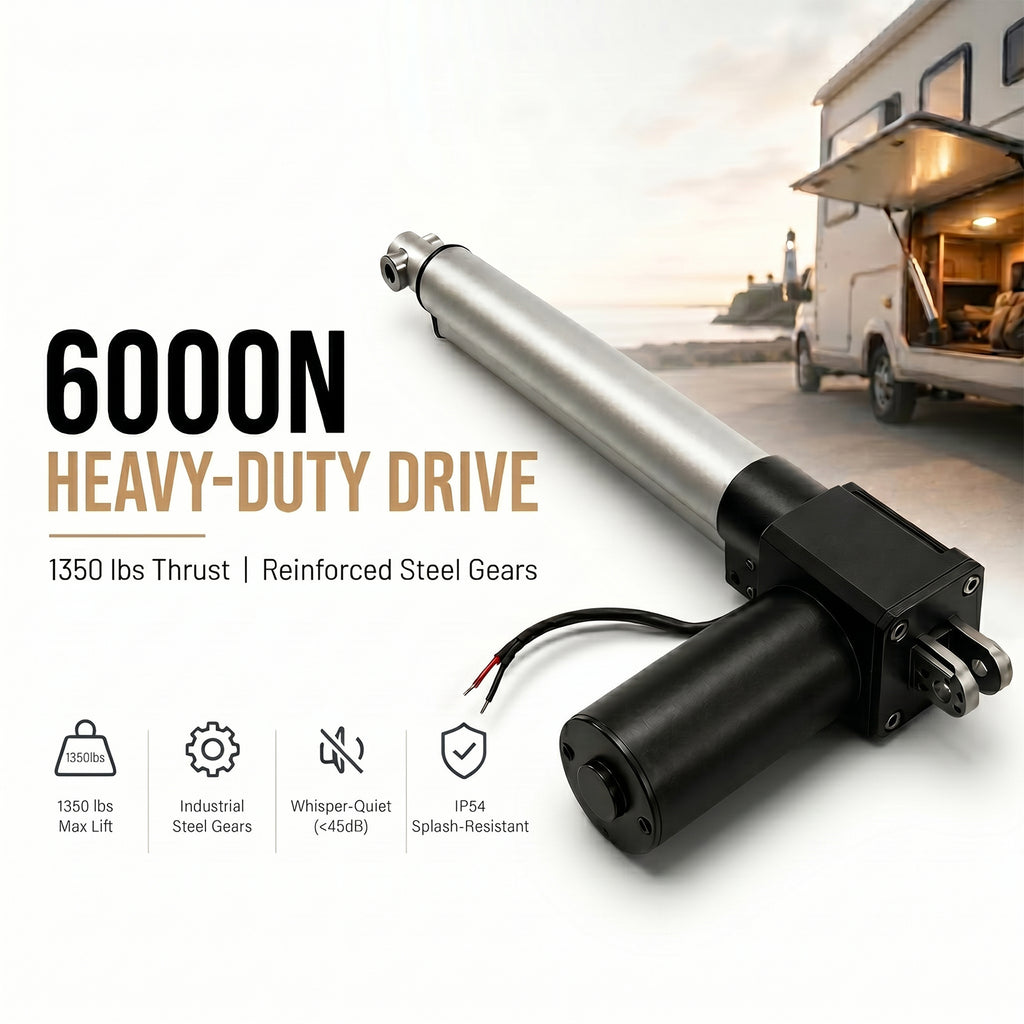

HyHaven 12V/24V Heavy Duty Linear Actuator 1320 lbs - 5mm/s IP54 Waterproof for Industrial, RV, Solar Tracker & Window Opener

We specialize in high-quality linear actuators and industrial automation solutions.

This Ultra-Heavy Duty 12V(24V) DC Linear Actuator delivers a massive 6000N (1320 lbs) of push & pull capacity. Engineered with a self-locking screw drive and dual limit switches, it ensures ultimate safety, stability, and zero-drift positioning. Perfect for demanding heavy-duty DIY projects and industrial tasks!

✨ KEY FEATURES:

• 6000N (1320lbs) Massive Thrust: High-torque 12V(24V) DC motor designed for the heaviest automation and lifting tasks.

• Secure Self-Locking: Holds its position firmly even when power is turned off. No drifting, no slipping—perfect for secure applications.

• Smart Dual Limit Switches: Built-in limit switches automatically stop the motor at full extension and retraction to prevent burnout.

• Severe Weather Resistance: IP54 waterproof casing with grease-sealed gearbox. Operates reliably from -20°C to +65°C.

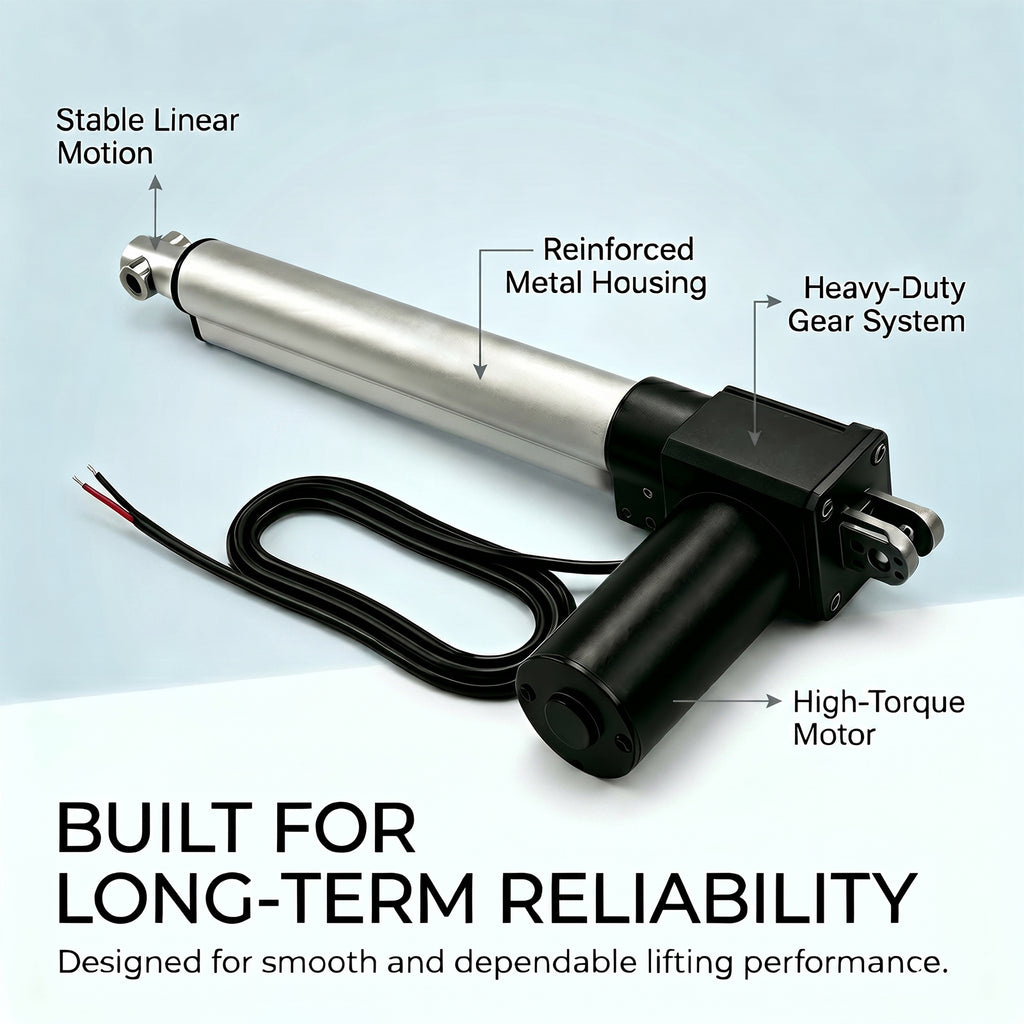

• Quiet & Heavy Duty: Solid metal construction that runs smoother and quieter (<55dB) than competing heavy actuators.

💡 HEAVY-DUTY APPLICATIONS:

• RV & Automotive: RV slide-outs, heavy cargo trailer ramp doors, and motorized lift beds.

• Home Automation: Heavy TV lifts, motorized floor hatches, hidden furniture, and electric window openers.

• Outdoor & Farming: Automatic solar panel tracking systems, heavy chicken coop doors, and industrial hatches.

📊 TECHNICAL SPECIFICATIONS:

• Input Voltage: 12V(24V) DC

• Max Load / Push & Pull Power: 6000N / 1320 lbs

• Travel Speed: 5mm/s

• Noise Level: < 55dB

• Protection Class: IP54 Weatherproof

• Operating Temperature: -20°C to +65°C

• Features: Self-locking, Built-in Dual Limit Switches

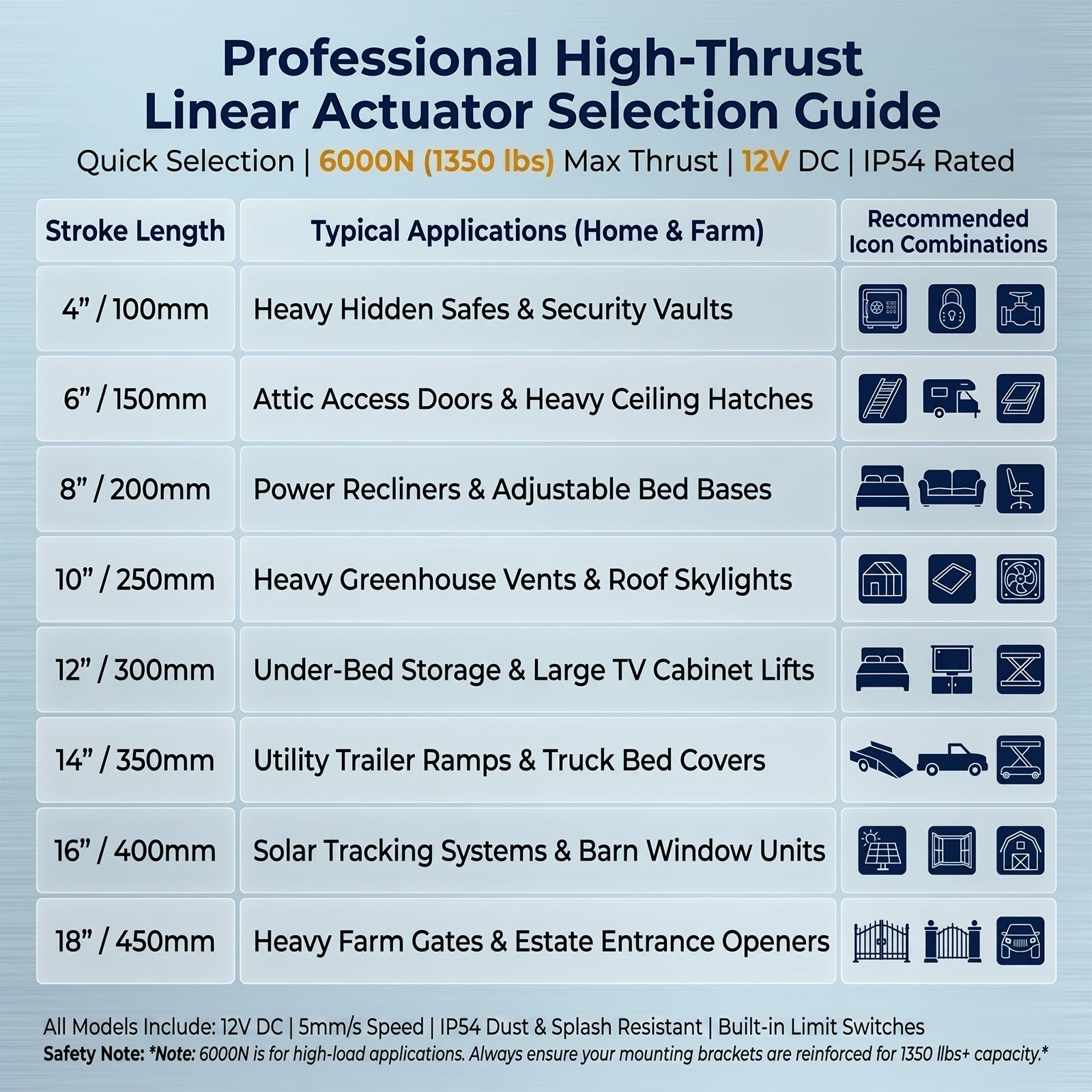

• Available Stroke Lengths:

- 2 Inch (50mm)

- 4 Inch (100mm)

- 6 Inch (150mm)

- 8 Inch (200mm)

- 10 Inch (250mm)

- 12 Inch (300mm)

- 14 Inch (350mm)

- 16 Inch (400mm)

- 18 Inch (450mm)

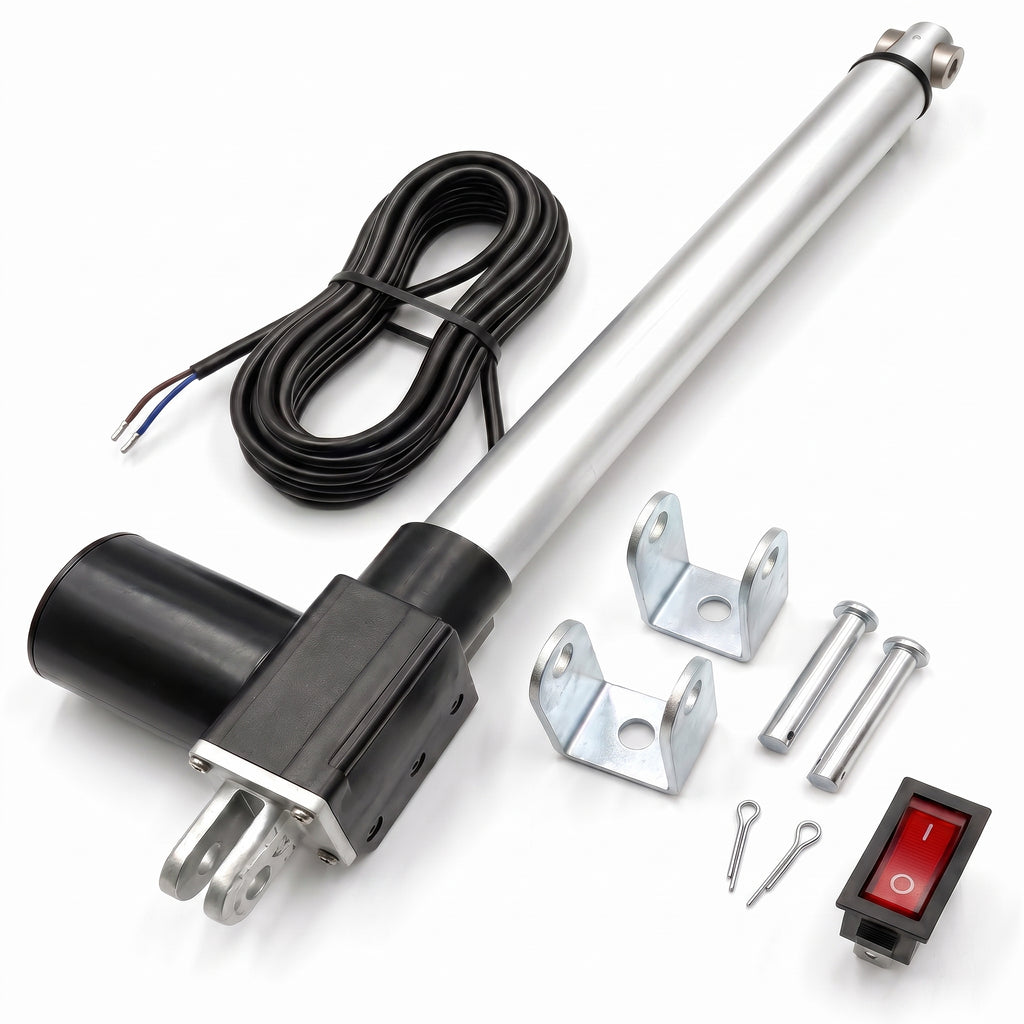

📦 PACKAGE INCLUDES:

1 x 12V(24V) DC 6000N Heavy Duty Linear Actuator

🔧 WARRANTY & SUPPORT:

Backed by professional technical support with a 30-day free replacement policy for non-user-caused defects. Chat with us anytime if you need help with wiring or installation!
