HyHaven 12V/24V Heavy Duty Linear Actuator 3500N (787 lbs) - Aluminum Alloy, IP65 Waterproof for Industrial Machinery, Automation & Heavy Gates

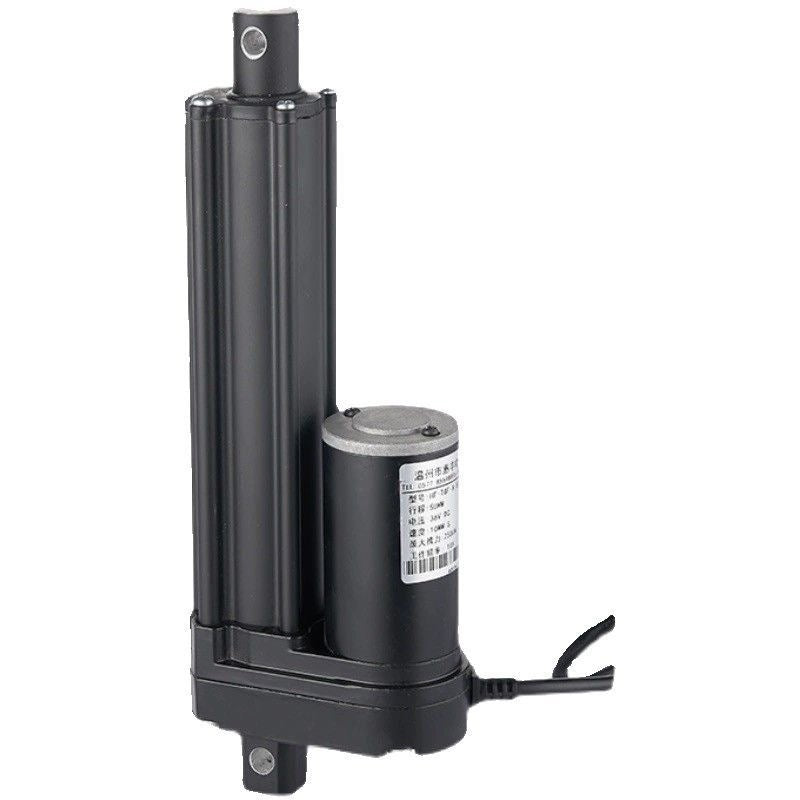

HyHaven 3500N Heavy Duty Linear Actuator – Built for the Toughest Jobs

Engineered for demanding environments, the HyHaven 3500N Linear Actuator delivers 787 lbs of pushing force with reliable precision. Whether you're automating a heavy gate, building industrial equipment, or powering high-load lift systems, this actuator is built to perform where others fail.

Key Features

• 3500N (787 lbs) Maximum Thrust – Handles heavy-duty loads with ease
• 12V/24V Dual Voltage – Compatible with a wide range of power systems
• IP65 Waterproof & Dustproof – Fully protected against dust and water jets
• Aluminum Alloy Housing – Lightweight yet extremely durable
• Built-in Limit Switches – Automatic stop at end of travel for safety
• Includes Mounting Brackets – Easy installation right out of the box
• Low Noise Motor – Smooth and quiet operation

Ideal Applications

• Industrial machinery & automation
• Heavy-duty automatic gates & doors
• Agricultural equipment
• Lift tables & platforms
• Solar panel positioning systems

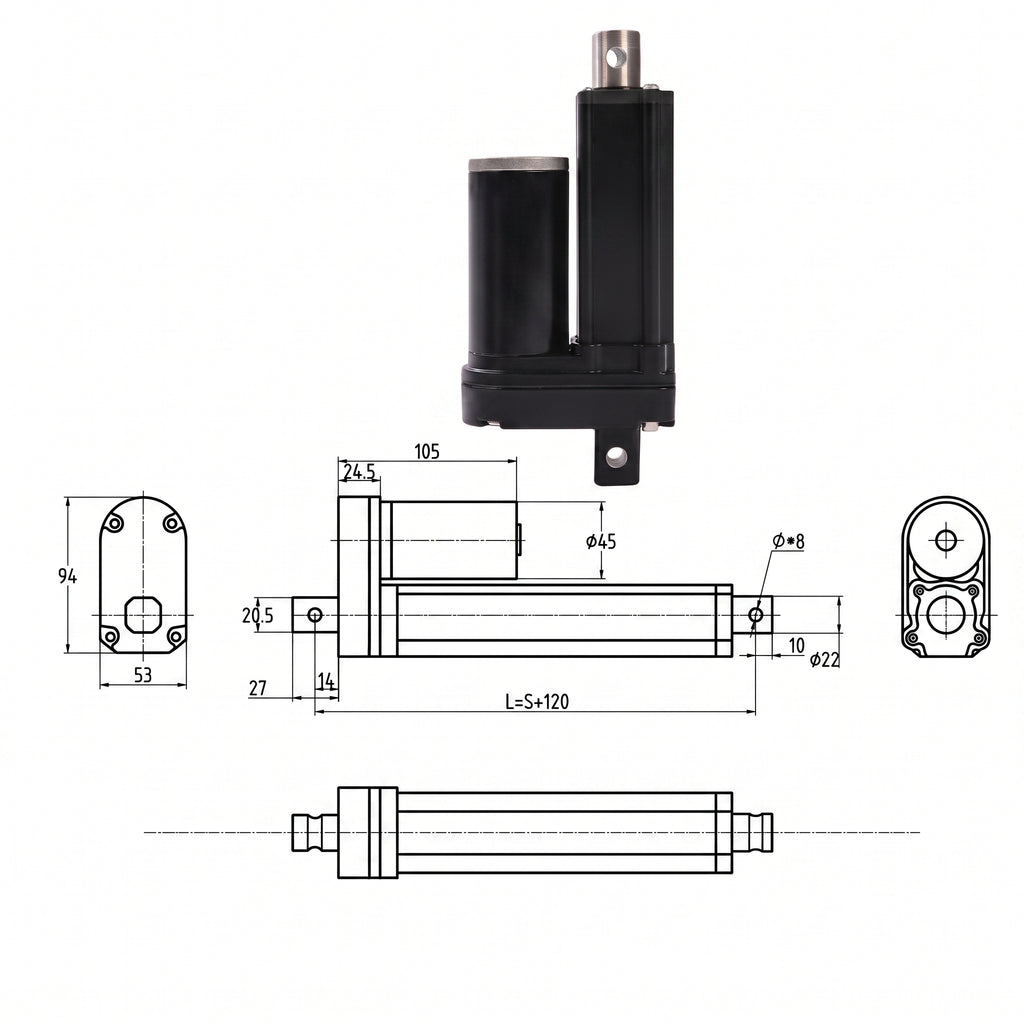

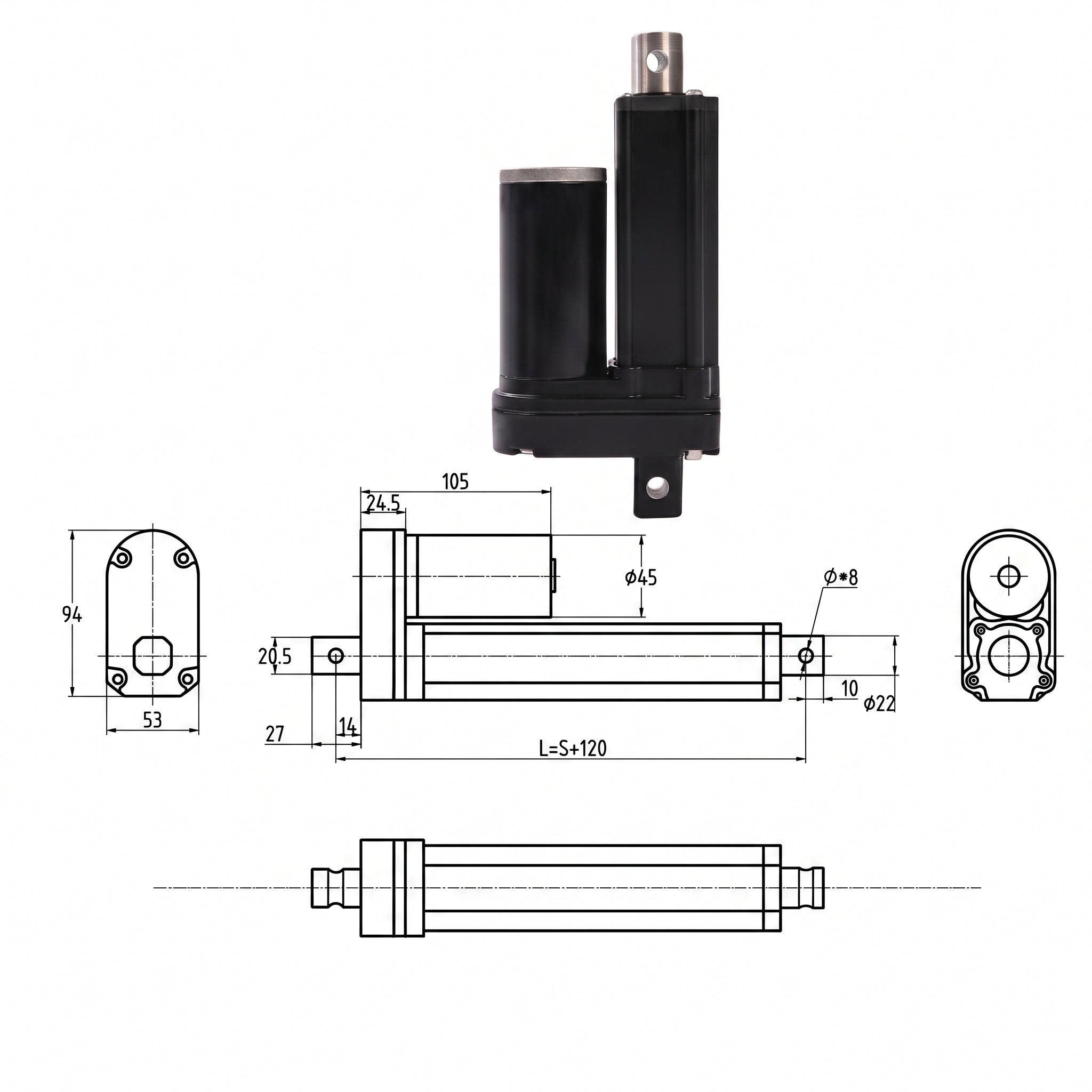

📊 Technical Specifications

Backed by HyHaven's commitment to industrial-grade quality, this actuator comes ready to install with standard mounting brackets included.

❓ Frequently Asked Questions

Q: What is the difference between IP54 and IP65?
A: IP65 provides complete dust protection and resistance to water jets from any direction — a significant upgrade over IP54. This makes the 3500N ideal for outdoor and industrial environments.

Q: Is this suitable for automatic gate applications?
A: Yes. With 3500N (787 lbs) of thrust and IP65 waterproofing, this actuator is well-suited for medium to heavy automatic gates and industrial door openers.

Q: Do I need a controller kit?
A: Yes, a controller is required to operate the actuator. Our wired or wireless controller kits are compatible and make setup plug-and-play.

Q: What's the difference between 12V and 24V?
A: Both deliver the same 3500N load capacity. Choose based on your existing power supply. 24V is recommended for longer wire runs or higher-efficiency systems.
