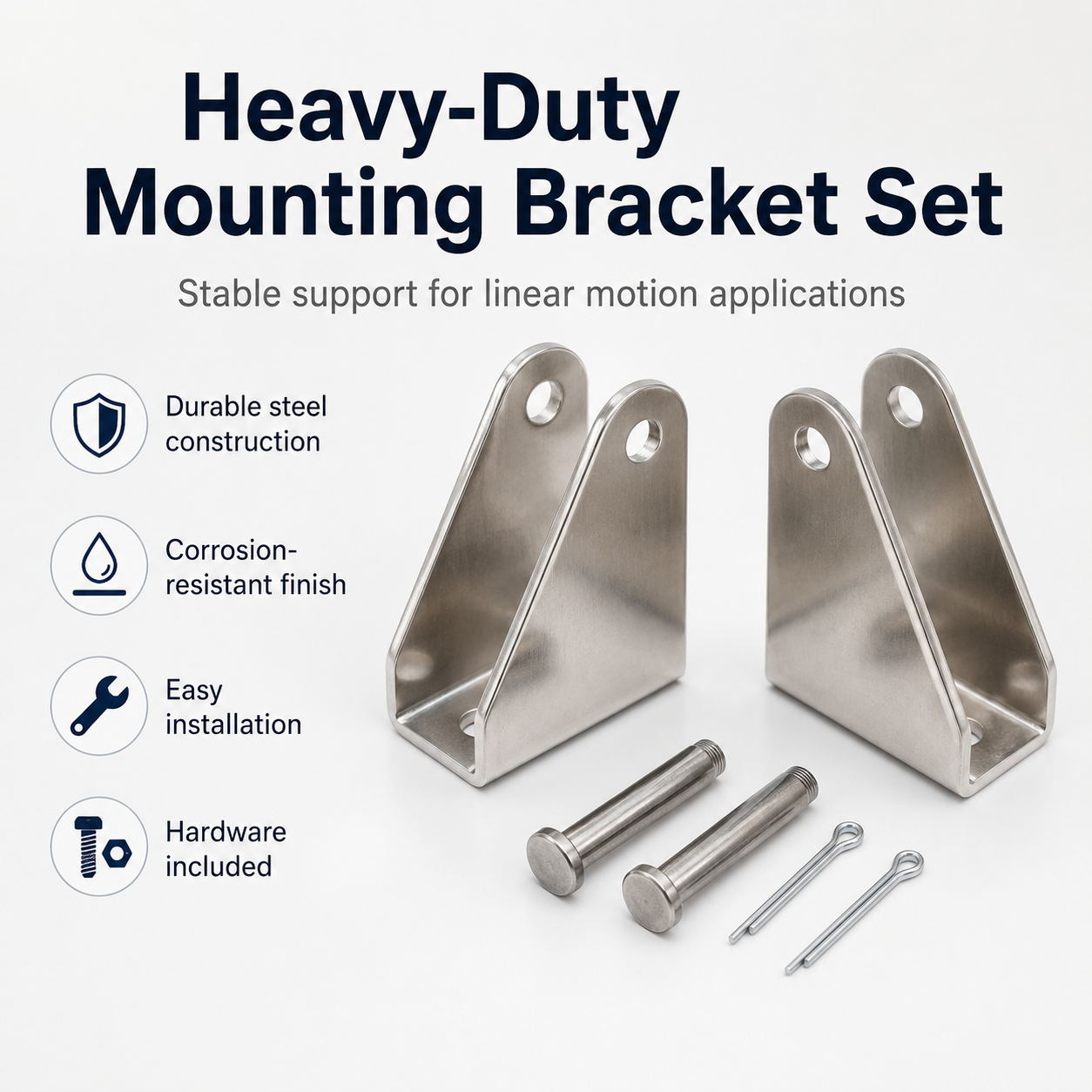

HyHaven Angled Mounting Brackets for 900N & 1500N Linear Actuators (2-Pack)

$12.99 USD
$20.99 USD $12.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
颜色
Request a Quote

The HyHaven Angled Linear Actuator Mounting Bracket Set provides a secure mounting connection for HyHaven 900N and 1500N linear actuators. Designed for pin-connected installations, the brackets allow convenient installation and removal. Compatibility HyHaven 900N Linear Actuators...

Read more technical details

Technical Specifications

The HyHaven Angled Linear Actuator Mounting Bracket Set provides a secure mounting connection for HyHaven 900N and 1500N linear actuators. Designed for pin-connected installations, the brackets allow convenient installation and removal.

Compatibility

  • HyHaven 900N Linear Actuators
  • HyHaven 1500N Linear Actuators

Technical Specifications

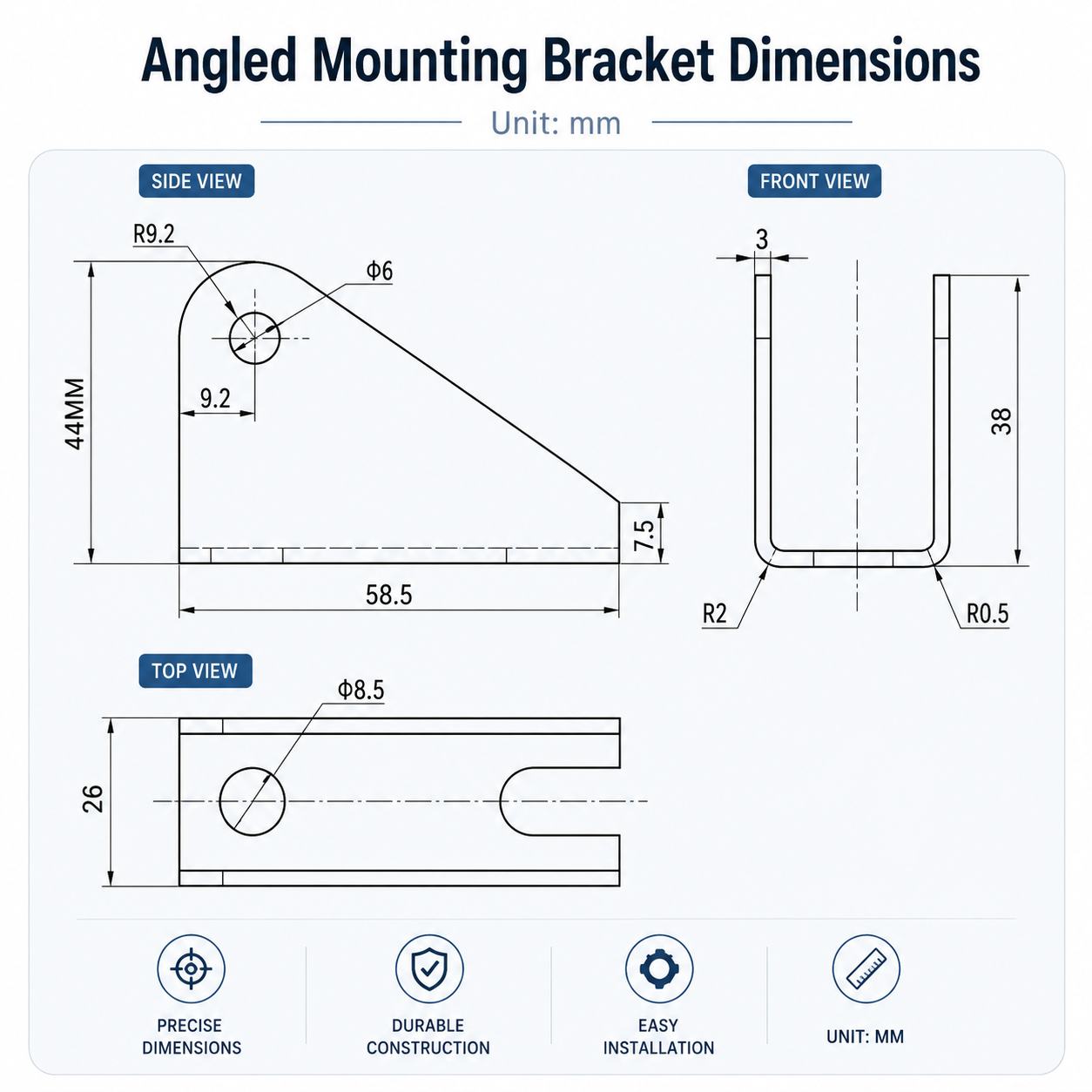

  • Overall Dimensions: 58.5 mm (L) × 44 mm (H) × 26 mm (W)
  • Plate Thickness: 3 mm
  • Mounting Holes: Upper pin hole (Ø6 mm), Base mounting hole (Ø8.5 mm)
  • Profile: Front-view height (38.5 mm), End height (7.5 mm)

What's Included

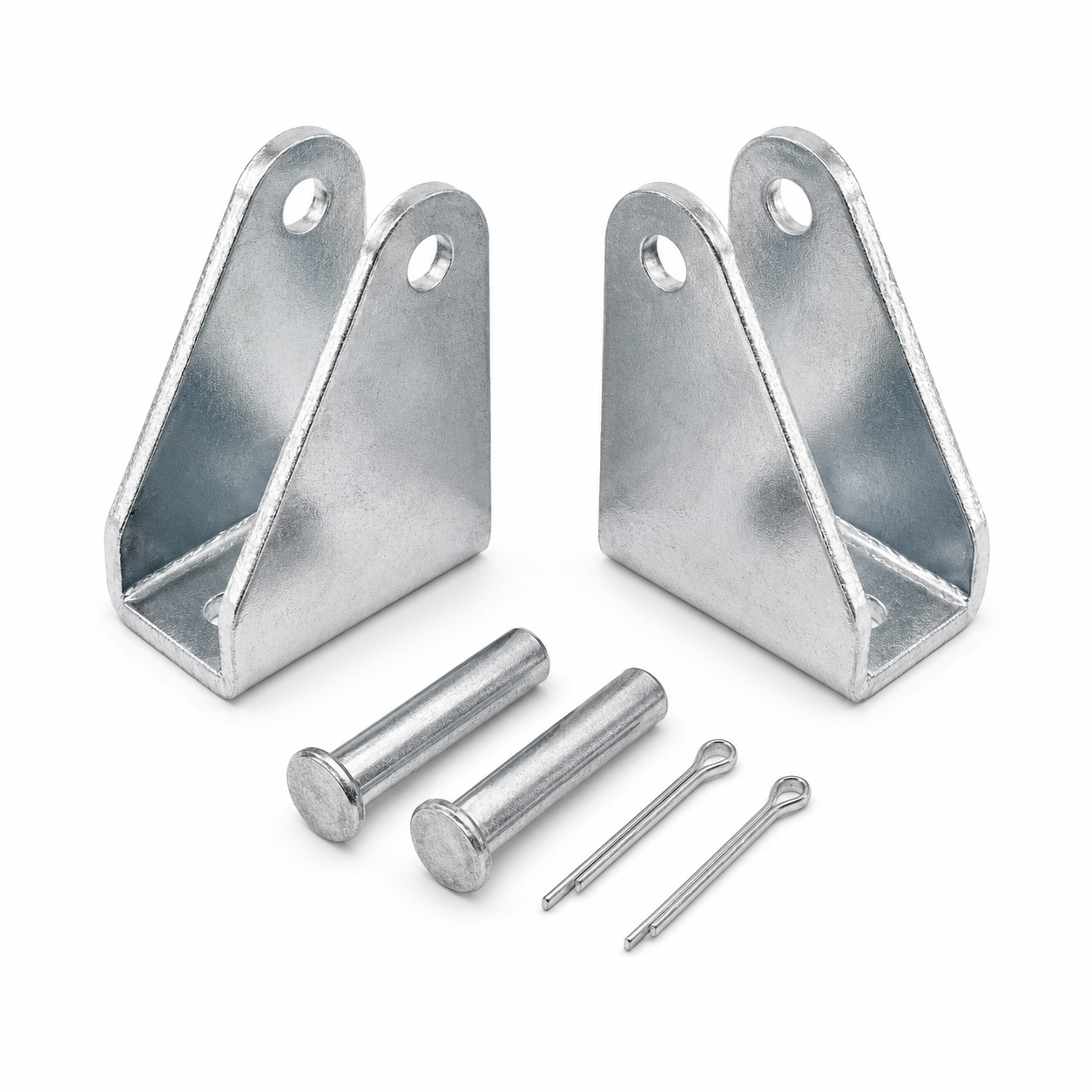

  • 2 × Angled Mounting Brackets
  • 2 × Mounting Pins
  • 2 × Cotter Pins for secure locking

Note: Please review the dimension drawing prior to installation. All dimensions are in millimeters (mm).

View full details

Core strengths

Built for demanding linear motion applications

Angled Mounting Bracket Set for 900N & 1500N Linear Actuators

  • Angled mounting design, pin connection, easy installation, mounting hardware included

Applications

Where this actuator can be used

01

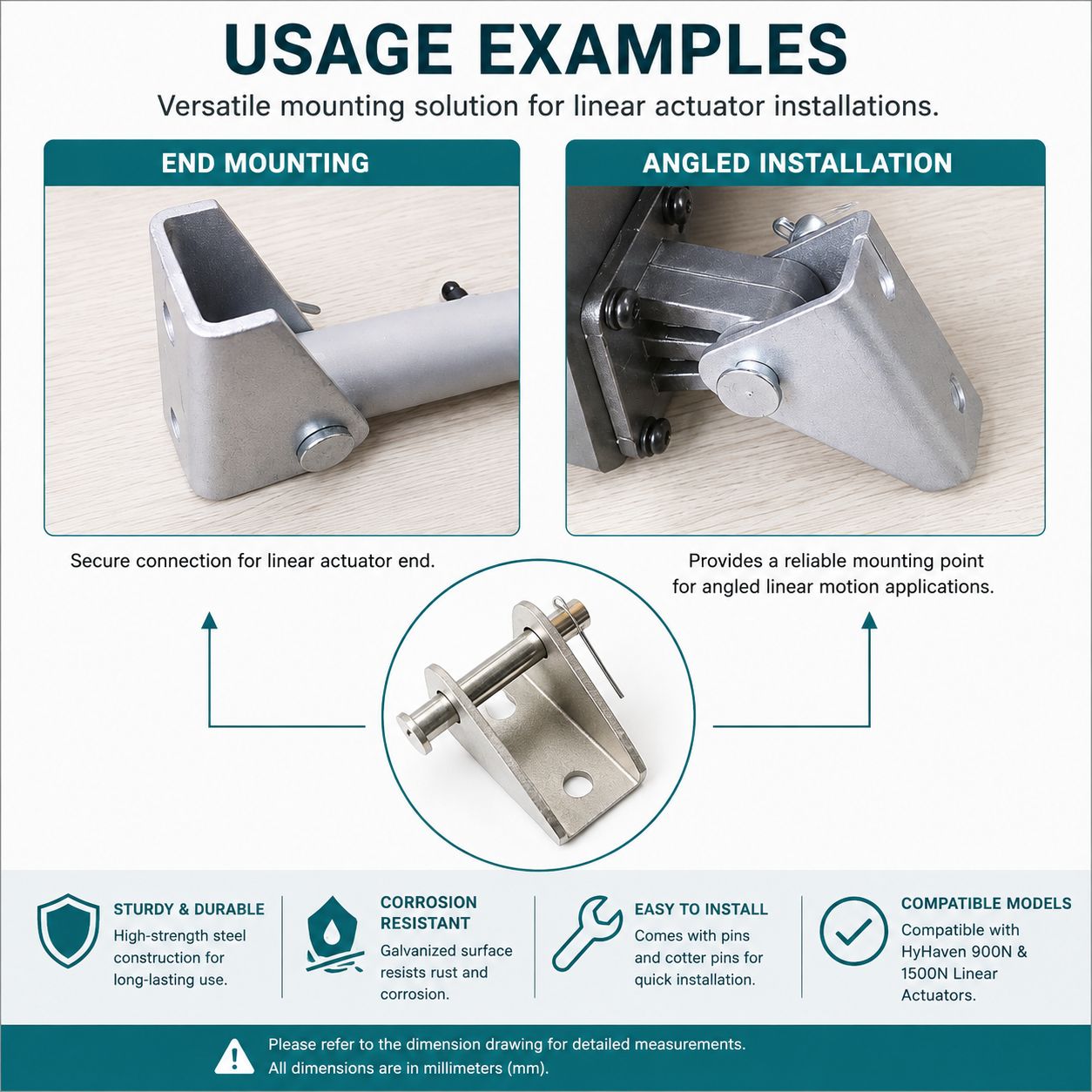

Linear actuator mounting, equipment installation, DIY automation projects
