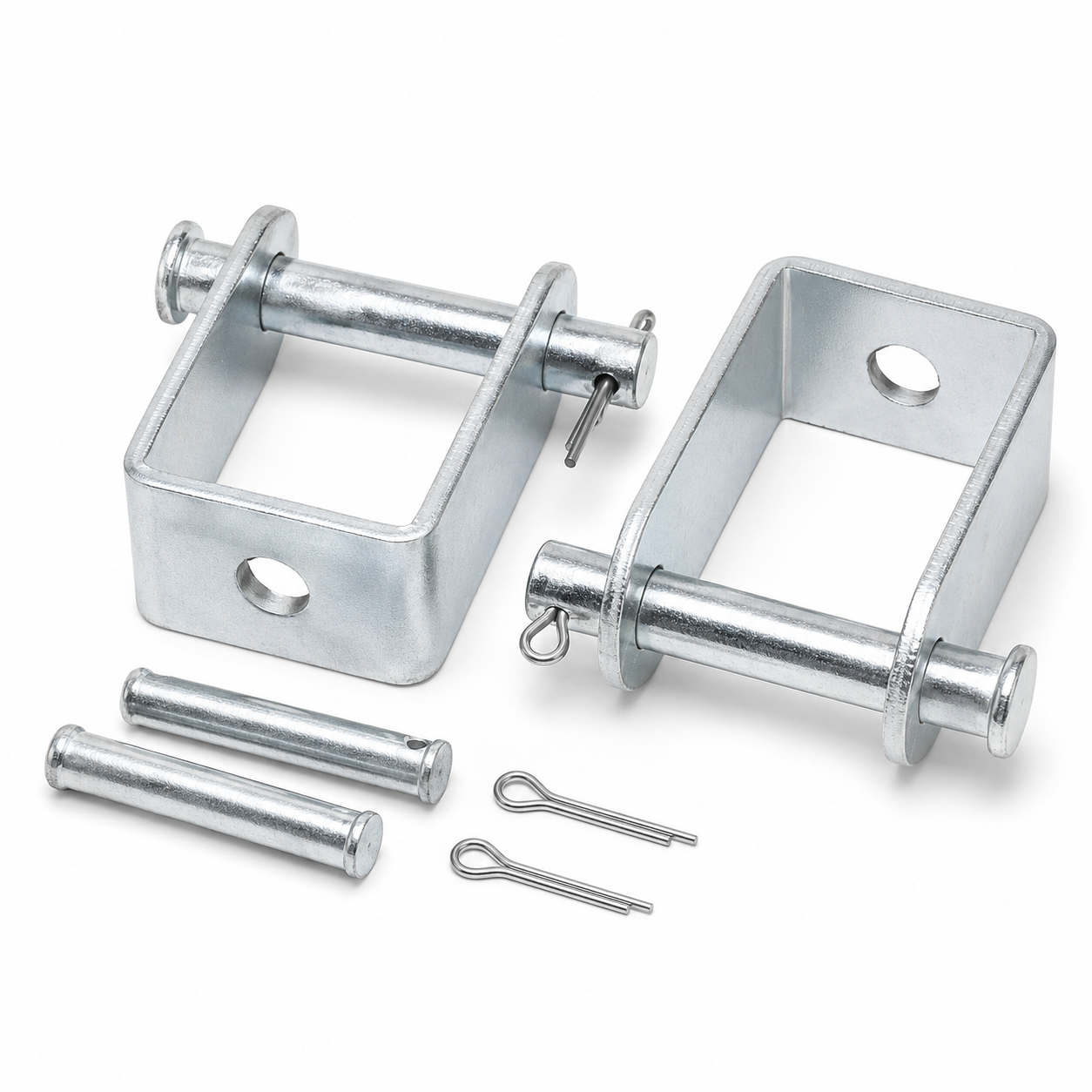

• HyHaven U-shaped clevis mounting bracket set for HH-LA-U3 6000N linear actuator

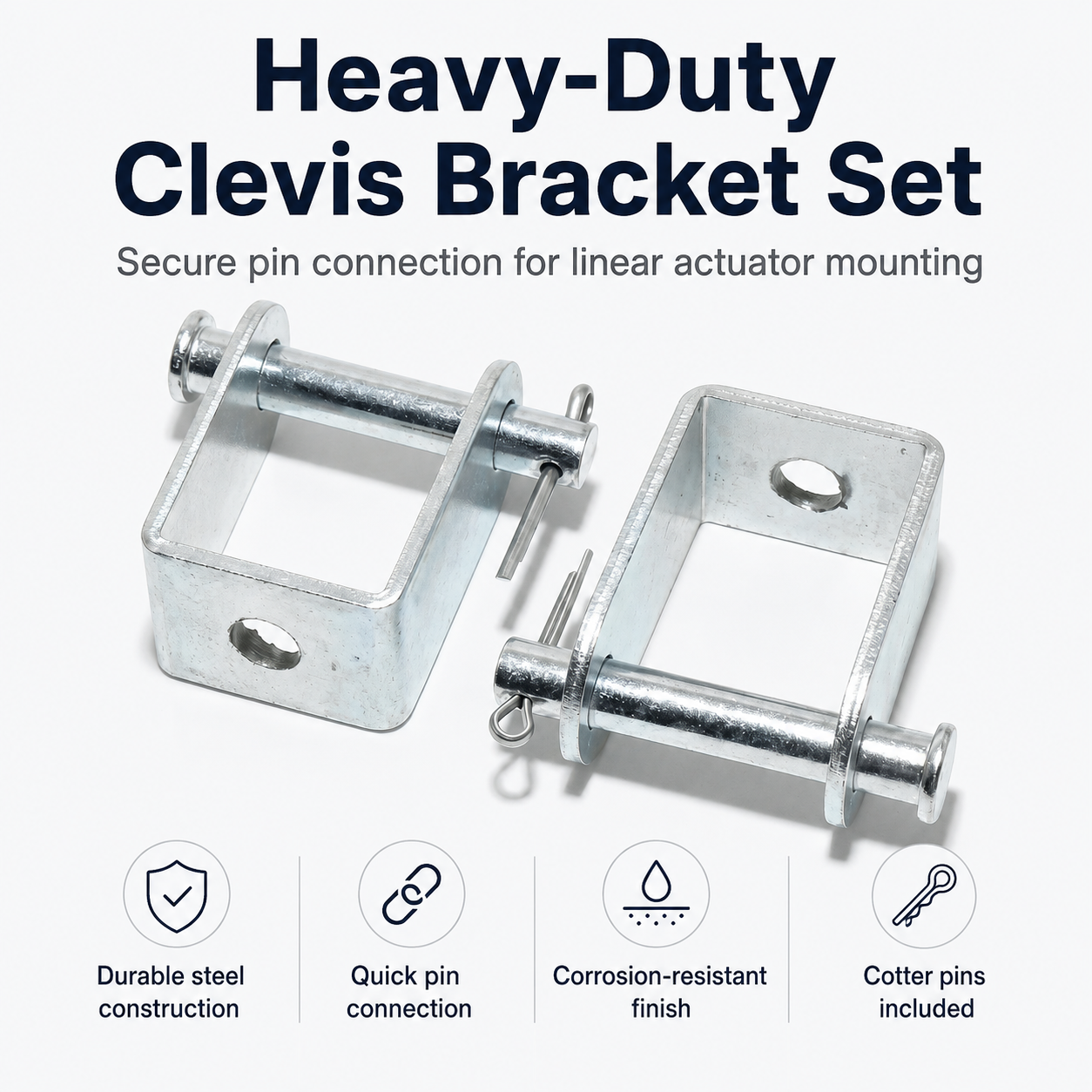

  • HyHaven U-shaped linear actuator clevis mounting bracket
  • HyHaven U-shaped linear actuator clevis mounting bracket
1 3

HyHaven U-Shaped Clevis Mounting Brackets for 6000N Linear Actuators (2-Pack)

$14.99 USD
$22.99 USD $14.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Request a Quote

The HyHaven U-Shaped Clevis Bracket Set provides a secure pin-connected mounting solution for the HyHaven HH-LA-U3 6000N Linear Actuator. The clevis design allows convenient assembly, installation and removal. Compatibility HyHaven HH-LA-U3 6000N Heavy-Duty Linear Actuator Technical...

Read more technical details

Technical Specifications

The HyHaven U-Shaped Clevis Bracket Set provides a secure pin-connected mounting solution for the HyHaven HH-LA-U3 6000N Linear Actuator. The clevis design allows convenient assembly, installation and removal.

Compatibility

  • HyHaven HH-LA-U3 6000N Heavy-Duty Linear Actuator

Technical Specifications

  • Overall Dimensions: 58 mm (L) × 40 mm (H) × 28 mm (W)
  • Plate Thickness: 2.70 mm
  • Mounting Profile: Upper outer radius R14, upper hole radius R5.20, side mounting hole radius R3
  • Pin Dimensions: 57.00 mm (L) × Ø9.50 mm

What's Included

  • 2 × U-Shaped Clevis Brackets
  • 2 × Clevis Pins
  • 2 × Cotter Pins for secure locking

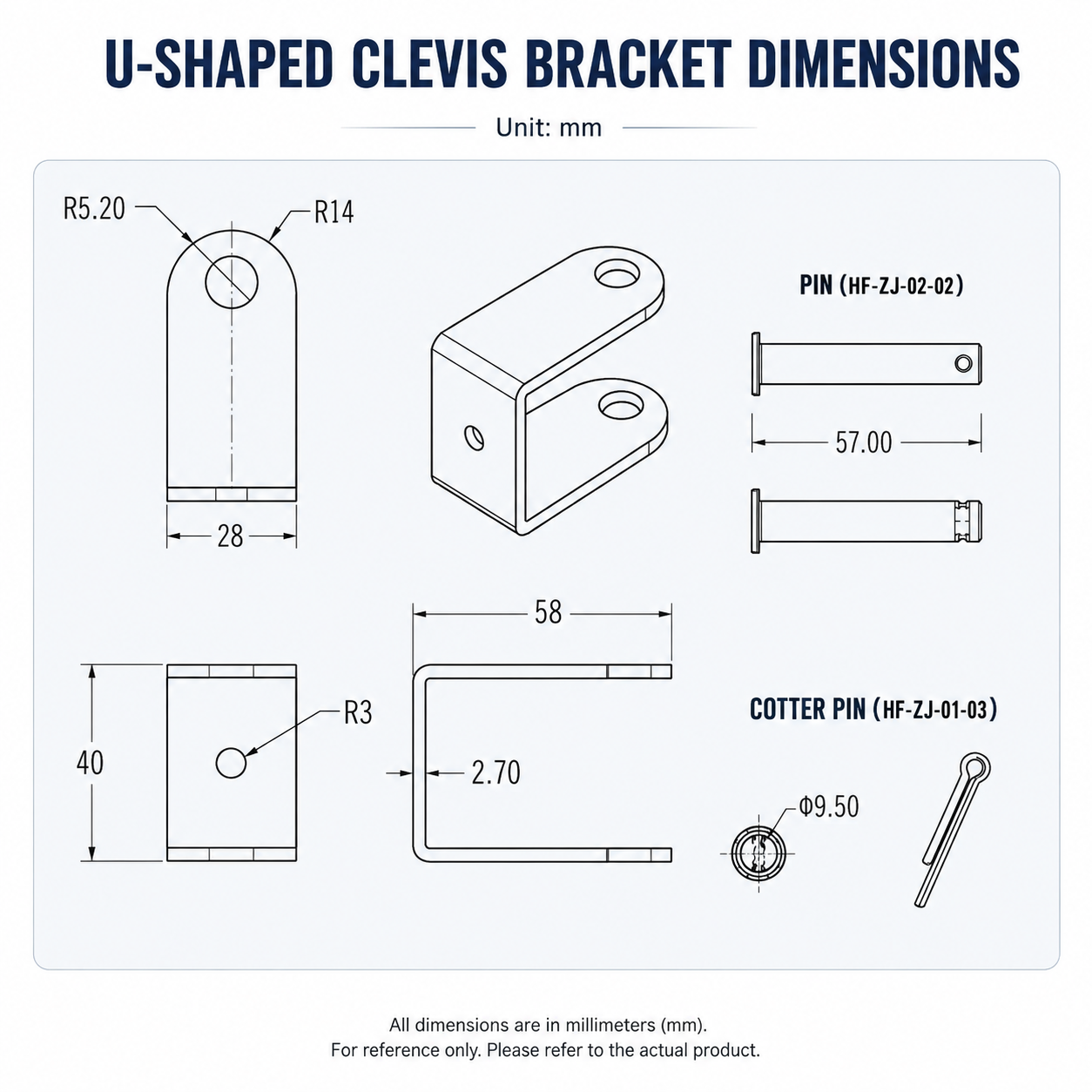

Note: Please refer to the technical dimension drawing prior to installation. All measurements are in millimeters (mm).

View full details

Core strengths

Built for demanding linear motion applications

U-Shaped Clevis Bracket Set for HH-LA-U3 6000N Linear Actuator

  • U-shaped clevis design, pin connection, easy installation, mounting hardware included
